heavy duty PU castor wheels

Model No.: CP42P-PUP

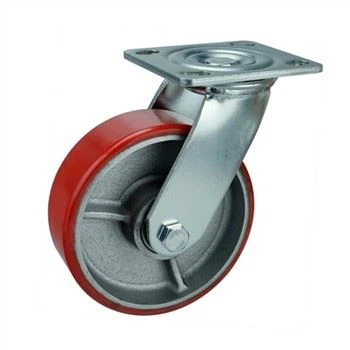

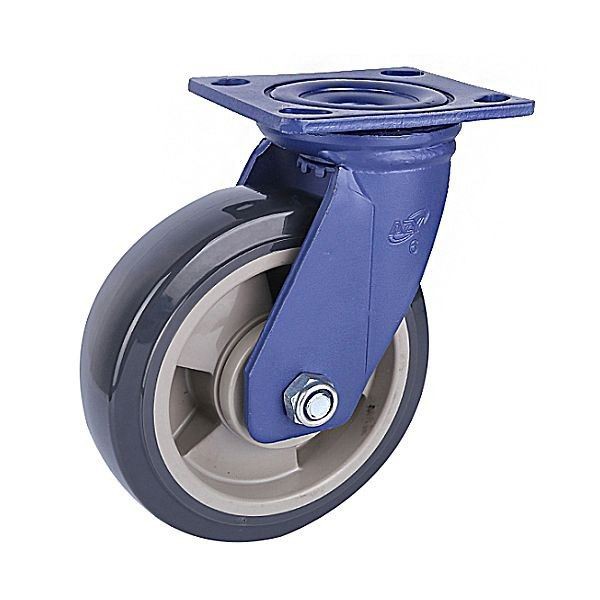

Product name: PU on PP Heavy Duty Casters
Optional Wheel: PP wheel,nylon wheel, TPR Wheel, cast iron wheel
Loading capacity: 400~500KGS
Housing:Made of pressed steel, zinc plated,double ballrace swivel head

Material：pu on pp

Bearing Type:Double ball Bearing

Temperature range:-30℃~80℃





Smooth Moves for Tough Jobs: Industrial-Grade Rollers That Won't Let You Down

Let's talk about keeping things moving - the right way. When your equipment needs to glide across the floor without fuss, our premium rollers deliver where others stumble.



What Makes These Rollers Special?

Built for business - handles serious weight without breaking a sweat

Rolls like butter - even when pushing heavy loads

Takes a beating - rough floors? No problem

Smart Features You'll Appreciate

1 Thick polyurethane tread - grips when needed, slides when you want
2 Reinforced core - won't crack under pressure
3 Tough steel frame - stands up to daily punishment
4 Sealed bearings - keeps dirt out, smooth rolling in



Where They Shine

Manufacturing plants

Warehouse operations

Equipment maintenance

Loading docks



Real Talk

These aren't your grandpa's casters. We've put them through hell to make sure they can handle yours:
1 10,000+ push/pull cycles
2 48-hour salt spray torture test
3 150% overload testing



Custom Options? You Bet

Need something special? We can tweak:

Tread hardness

Bearing types

Mounting styles

Color coding



Bottom Line

If you're tired of replacing failed casters every few months, it's time to try rollers that actually last.



Want to test them out? We'll send samples so you can see the difference firsthand.







Swivel Caster

Model	Wheel Dia.*Width (mm)	Total Height (mm)	Offset (mm)	Top Plate (L*W*T)	Hole Spacing (mm)	Hole Size (mm)	Load Capacity (kg)
CP42P-PUP-SPS100.50	100*50	143	30	116*100*6	92/77*76/67	11	400
CP42P-PUP-SPS125.50	125*50	164	38	116*100*6	92/77*76/67	11	420
CP42P-PUP-SPS150.50	150*50	188	40	116*100*6	92/77*76/67	11	450
CP42P-PUP-SPS200.50	200*50	236	58	116*100*6	92/77*76/67	11	500









Rigid Caster

Model	Wheel Dia.*Width (mm)	Total Height (mm)	Offset (mm)	Top Plate (L*W*T)	Hole Spacing (mm)	Hole Size (mm)	Load Capacity (mm)
CP42P-PUP-SPR100.50	100*50	143	/	116*100*6	92/77*76/67	11	400
CP42P-PUP-SPR125.50	125*50	164	/	116*100*6	92/77*76/67	11	420
CP42P-PUP-SPR150.50	150*50	188	/	116*100*6	92/77*76/67	11	450
CP42P-PUP-SPR200.50	200*50	236	/	116*100*6	92/77*76/67	11	500









Double Brake Caster

Model	Wheel Dia.*Width (mm)	Total Height (mm)	Offset (mm)	Top Plate (L*W*T)	Hole Spacing (mm)	Hole Size (mm)	Load Capacity (mm)
CP42P-PUP-SPB100.50	100*50	143	30	116*100*6	92/77*76/67	11	400
CP42P-PUP-SPB125.50	125*50	164	38	116*100*6	92/77*76/67	11	420
CP42P-PUP-SPB150.50	150*50	188	40	116*100*6	92/77*76/67	11	450
CP42P-PUP-SPB200.50	200*50	236	58	116*100*6	92/77*76/67	11	500







Customer satisfaction:



High Grade Material：

Impact load: the instantaneous bearing capacity of caster when the equipment is impacted or vibrated by the load. Static load static load static load static load: the weight that the caster can bear in the static state. In general, the static load should be 5-6 times of the exercise load (dynamic load), and the static load should be at least 2 times of the impact load.

Steering: hard and narrow wheels are easier to turn than soft and wide wheels. Turning radius is an important parameter of wheel rotation. Too short turning radius will increase the difficulty of turning, and too large turning radius will lead to wheel shaking and shortened life.

Driving flexibility: the factors that affect the driving flexibility of casters include the structure of the bracket, the selection of the bracket steel, the size of the wheel, the type of the wheel, the bearing, etc. the larger the wheel, the better the driving flexibility. The hard and narrow wheels on the stable ground are less labor than the soft wheels on the flat edge, but the soft wheels on the uneven ground are less labor, but the soft wheels on the uneven ground are better To protect equipment and shock!

application area

It is mainly used in trolleys, mobile scaffolds, workshop trucks, etc.

The simplest inventions are often the most important, and casters have this property. At the same time, the development level of a city is often positively related to the use of casters, such as Shanghai, Beijing, Tianjin, Chongqing, Wuxi, Chengdu, Xi'an, Wuhan, Guangzhou, Foshan, Dongguan, Shenzhen and other cities.



The structure of caster is made of single wheel mounted on the bracket, which is used for mounting under the equipment to make it move freely. Castors are mainly divided into two categories:

A. Fixed caster: the fixed bracket is equipped with a single wheel and can only move in a straight line.

B. Movable caster: the 360 degree steering bracket is equipped with a single wheel, which can drive in any direction at will.

There are many kinds of casters, which are different in size, model and tire surface. Choose the right wheel under the following conditions:

A. Use the site environment.

B. Load capacity of the product.

C. The working environment contains chemicals, blood, grease, engine oil, salt and other substances.

D. Various special climates, such as humidity, high temperature or severe cold

E requirements for shock resistance, collision and driving quietness.
