polyurethane tread Casters

Model No.: CP47

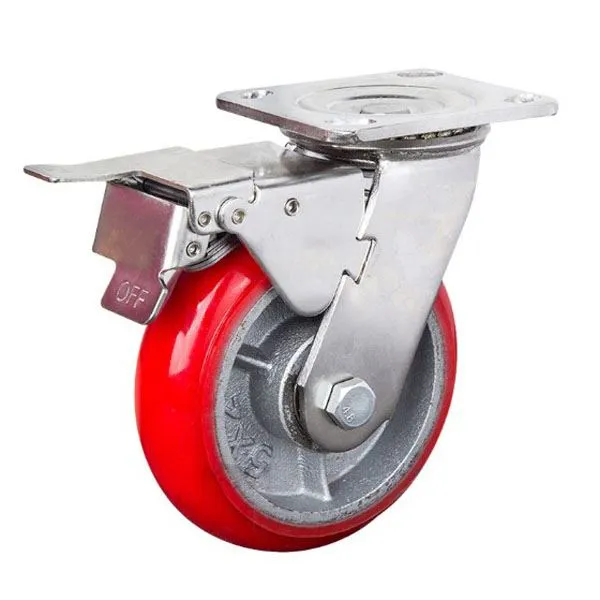

Product name: Round PU on Cast Iron Casters

Loading capacity: 250~600KGS



Overview:

Round PU on Cast Iron Casters are usually used for easily moving and shock absorbing conditions, superior to rubber in withstanding grease, oil, cutting, chunking, and abrasive wear. Not meant on poor floors or for absorbing shocks, abuse, overloading, obstructions, or storage. Here we introduce main normal sizes of 4inch,5inch,6inch and 8inch. It depends on customer needs for terminal installation and operations.



Application:

Our industrial PU on iron core casters are widely used in material handling equipment, warehouse, auto-mobile factory, hand trolleys, medium or heavy duty carts and wast containers.



Features & Advantages:

Tread:

1. Non Marking and Non Conductive.

2. ECO-friendly

3. Round wheel tread, super easy moving

4. Pure color without no released bubble ,industrial appearance

5. Strict test, up to 600 kgs per wheel



After sales service：





Swivel

Model	Wheel Dia.*Width (mm)	Total Height (mm)	Swivel Radius (mm)	Top Plate (L*W)	Hole Spacing (mm)	Hole Size (mm)	Housing Distance(mm)	Bearing Type	Load Capacity (kg)
CP47S-RPC100.50	100*50	135	35	100*115*6	72*85	20*13	63*6	Ball bearing	250
CP47S-RPC125.50	125*50	159	39	100*115*6	72*85	20*13	63*6	Ball bearing	350
CP47S-RPC150.50	150*50	189	45	100*115*6	72*85	20*13	63*6	Ball bearing	500
CP47S-RPC200.50	200*50	238	56	100*115*6	72*85	20*13	63*6	Ball bearing	600



Rigid

Model	Wheel Dia.*Width (mm)	Total Height (mm)	Swivel Radius (mm)	Top Plate (L*W)	Hole Spacing (mm)	Hole Size (mm)	Housing Distance(mm)	Bearing Type	Load Capacity (kg)
CP47R-RPC100.50	100*50	135	/	100*115*6	72*85	20*13	63*6	Ball bearing	250
CP47R-RPC125.50	125*50	159	/	100*115*6	72*85	20*13	63*6	Ball bearing	350
CP47R-RPC150.50	150*50	189	/	100*115*6	72*85	20*13	63*6	Ball bearing	500
CP47R-RPC200.50	200*50	238	/	100*115*6	72*85	20*13	63*6	Ball bearing	600



Swivel with side brake

Model	Wheel Dia.*Width (mm)	Total Height (mm)	Swivel Radius (mm)	Top Plate (L*W)	Hole Spacing (mm)	Hole Size (mm)	Housing Distance(mm)	Bearing Type	Load Capacity (kg)
CP47SB-RPC100.50	100*50	135	35	100*115*6	72*85	20*13	63*6	Ball bearing	250
CP47SB-RPC125.50	125*50	159	39	100*115*6	72*85	20*13	63*6	Ball bearing	350
CP47SB-RPC150.50	150*50	189	45	100*115*6	72*85	20*13	63*6	Ball bearing	500
CP47SB-RPC200.50	200*50	238	56	100*115*6	72*85	20*13	63*6	Ball bearing	600



Swivel with total brake

Model	Wheel Dia.*Width (mm)	Total Height (mm)	Swivel Radius (mm)	Top Plate (L*W)	Hole Spacing (mm)	Hole Size (mm)	Housing Distance(mm)	Bearing Type	Load Capacity (kg)
CP47T-RPC100.50	100*50	135	35	100*115*6	72*85	20*13	63*6	Ball bearing	250
CP47T-RPC125.50	125*50	159	39	100*115*6	72*85	20*13	63*6	Ball bearing	350
CP47T-RPC150.50	150*50	189	45	100*115*6	72*85	20*13	63*6	Ball bearing	500
CP47T-RPC200.50	200*50	238	56	100*115*6	72*85	20*13	63*6	Ball bearing	600

Customer satisfaction:



High Grade Material：



Ready for shipment：



Delivery & Payment Term:





RFQ:

Q1: Are you a manufacturer or trading company?
A1: We have factory in Ningbo, and we also do trade for 12 years. If you have other inquiry
about caster wheels and accessories, please be free to send us inquiry!

Q2: What is the lead time?
A2: In a general way, it takes 25-35 days after received the deposit.

Q3: Can you do our brand?
A3: Yes, we can do OEM.

Q4: Can I get a low price if we place large quantities ?



Welcome for your order!
