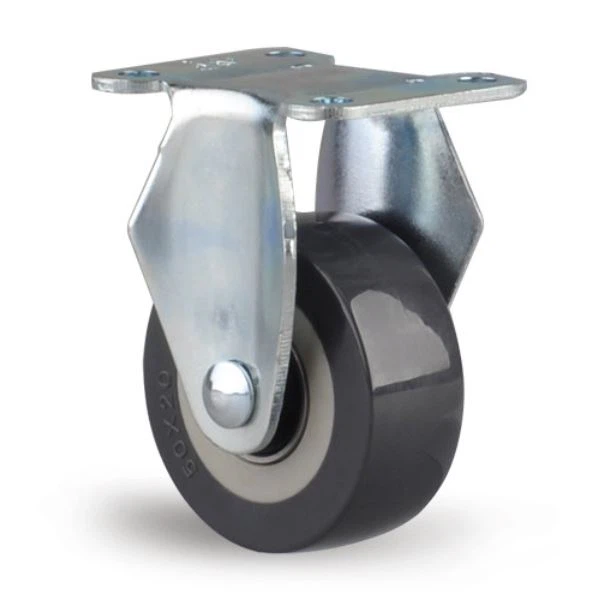

2 Inch Polyurethane On Polypropylene Rigid Casters
Product name: 2 Inch Polyurethane On Polypropylene Casters
Optional Wheel: Black PP wheel,white nylon wheel and TPR Wheel
Model No.:CP8P-PUP-SPR50.20
Product name: 2 Inch Polyurethane On Polypropylene Rigid Casters
Optional Wheel: Black PP wheel,white nylon wheel and TPR Wheel
Loading capacity: 50KGS
Housing:Made of pressed steel, zinc plated
Material：pu on pp
Bearing Type:Double ball Bearing
Temperature range:-30℃~80℃
After sales service：
Specification：
|
Type |
2 Inch Polyurethane On Polypropylene Rigid Casters |
|
Wheel size(mm) |
50*20 |
|
Tread Material |
PU |
|
Mounting Height(mm) |
70 |
|
Plate Thickness(mm) |
2 |
|
Surface Treatment |
Zinc plated |
|
Tread Color |
Gray and blue |
|
Applicable Temperature |
-30℃~80℃ |
|
Load Capacity(kgs) |
50 |
|
Bearing Type |
Ball bearings |
Rigid Caster
|
Model |
Wheel Dia.*Width (mm) |
Total Height (mm) |
Offset (mm) |
Top Plate (L*W*T) |
Hole Spacing (mm) |
Hole Size (mm) |
Load Capacity (KG) |
|
CP8P-PUP-SPR50.20 |
50*20 |
70 |
/ |
54*44*2 |
40/30*40/30 |
6.2 |
50 |
Customer satisfaction:
High Grade Material：
Ready for shipment：
Delivery & Payment Term:
As we all know, caster is a general term, which includes movable and fixed castors. The movable caster, also known as the universal wheel, can rotate 360 degrees. The fixed caster has no rotating structure and cannot rotate. Basically, the two types of casters are usually used together. For example, the framework of the trolley is two fixed wheels at the front, and two movable universal wheels are close to the pushing armrest at the rear.
It is also very difficult to explore the history of casters. However, after people invented the wheel, it became much easier to carry and transfer objects. However, the wheel can only run in a straight line, so it is still very difficult to change the direction when carrying important objects. Later, we invented the wheel with steering structure, which is what we now call castors or wheels Universal wheel. The invention of caster brings great convenience to people's transportation, especially moving things. It can not only be carried easily, but also move with any direction, which greatly improves the efficiency.
