4 inch stainless steel caster

Model No.: CP5
Product name: PU on PP Stainless Steel Casters
Optional Wheel: Black PP wheel,white nylon wheel and TPR Wheel
Loading capacity: 70~120KGS
Housing:Made of pressed steel, zinc plated,double ballrace swivel head

Material：pu on pp

Bearing Type:Double ball Bearing

Temperature range:-30℃~80℃





After sales service：

1 Customers who purchase casters in our company can enjoy free maintenance for 2 years

2 Our company guarantees 7 * 16 hours of service, quickly responds to customers' questions and customized needs within 12 hours

3 For special projects, the company will provide remote guidance or on-site operation guidance



Specification：

Type	PU on PP Stainless Steel Casters
Wheel size(mm)	80*30/100*30/125*35
Tread Material	PU
Mounting Height(mm)	106/128/155
Plate Thickness(mm)	3
Surface Treatment	Stainless steel
Tread Color	Gray
Applicable Temperature	-30℃~80℃
Load Capacity(kgs)	70~120
Bearing Type	Double ball bearings



Swivel Caster

Model	Wheel Dia.*Width (mm)	Total Height (mm)	Offset (mm)	Top Plate (L*W*T)	Hole Spacing (mm)	Hole Size (mm)	Load Capacity (KG)
CP5S-PPS80.30	80*30	106	37.5	105*82.5*3	80*60	9	70
CP5S-PPS100.30	100*30	128	40	105*82.5*3	80*60	9	100
CP5S-PPS125.35	125*35	155	47	105*82.5*3	80*60	9	120

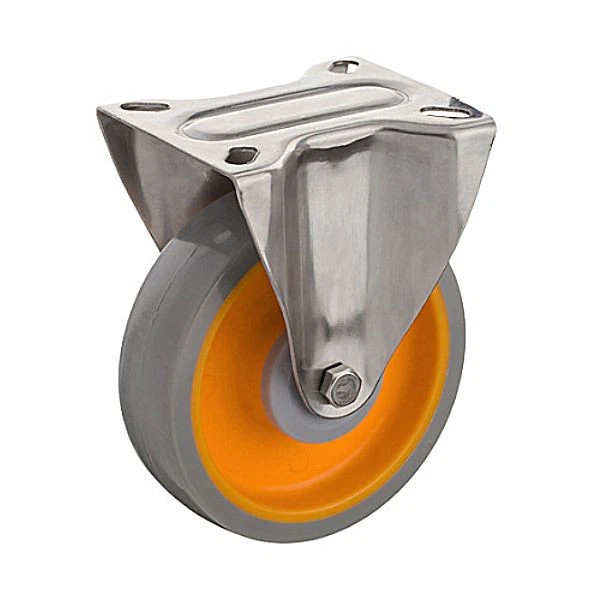

Rigid Caster

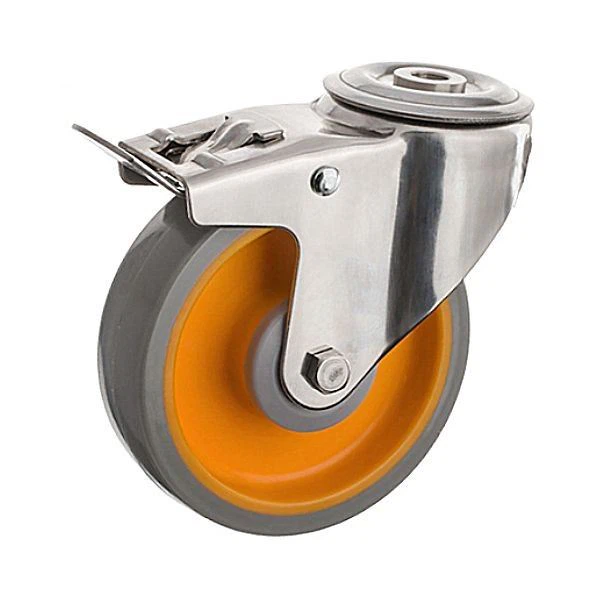

Double Brake Caster

Model	Wheel Dia.*Width (mm)	Total Height (mm)	Offset (mm)	Top Plate (L*W*T)	Hole Spacing (mm)	Hole Size (mm)	Load Capacity (mm)
CP5T-PPS80.30	80*30	106	37.5	105*82.5*3	80*60	9	70
CP5T-PPS100.30	100*30	128	40	105*82.5*3	80*60	9	100
CP5T-PPS125.35	125*35	155	47	105*82.5*3	80*60	9	120

Optional Wheels

Plastic Wheel	Nylon Wheel	TPR Wheel



High Grade Material：



Ready for shipment：



Delivery & Payment Term:



matters needing attention

1. Avoid being overweight.

2. Do not offset.

3. Regular maintenance, such as regular oiling, timely inspection of screws.



Heavy duty casters refer to casters with relatively large load capacity. They are classified according to the load-bearing capacity of casters. They are relatively light duty casters and medium duty casters. There is no clear boundary. They are generally from 500 kg to 15 tons, or even higher load casters. They are called heavy duty casters.

Support design of heavy duty caster

The support of heavy duty caster is usually made of metal materials, including common steel plate stamping, cast steel forming, die forging steel forming, etc., which is usually plate type assembly. The steel plate thickness of heavy-duty casters is generally 8mm, 10 mm, 16 mm and more than 20 mm. At present, Wanda has designed a 12 ton super heavy caster for CNPC system, which adopts 30mm thick steel plate and 40mm supporting plate, effectively ensuring the safety of the loaded products.

Design of rotating plate of heavy universal wheel

Heavy duty casters usually use double-layer steel ball track, stamping forming, heat treatment. For the rotating plate of the heavy universal wheel, the plane ball bearing or plane needle roller bearing with larger force is generally used, and the matching cone bearing effectively improves the load capacity of the heavy caster. For the special impact resistant heavy-duty universal wheels, the rotating plate is made of die forged steel, which can effectively avoid the welding of connecting plate bolts and improve the impact resistance of casters with greater strength.
