shopping cart casters

Model No.: CP6S-1

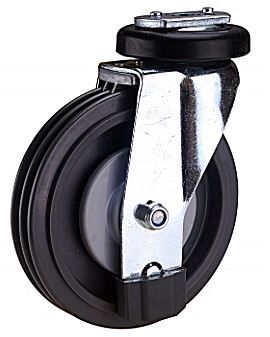

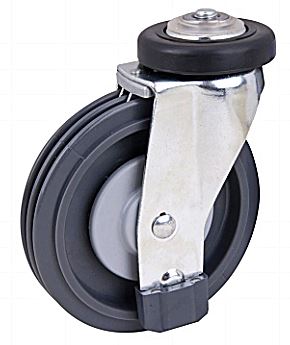

Product name: Medium Duty Shopping Cart Escalator Casters
Optional Wheel: Black PP wheel,white nylon wheel
Loading capacity: 90KGS
Housing:Made of pressed steel, zinc plated, single ballrace swivel head

Material：TPR on pp

Bearing Type:Double ball bearing

Temperature range:-20℃~60℃



After sales service：

1 Customers who purchase casters in our company can enjoy free maintenance for 2 years

2 Our company guarantees 7 * 16 hours of service, quickly responds to customers' questions and customized needs within 12 hours

3 For special projects, the company will provide remote guidance or on-site operation guidance





Specification：



Type	Medium Duty Shopping Cart Escalator Casters
Wheel size(mm)	125*30/127*28/
Tread Material	TPR
Mounting Height(mm)	158/159
Plate Thickness(mm)	NA
Surface Treatment	Zinc plated
Tread Color	Black/Grey
Applicable Temperature	-20℃~60℃
Load Capacity(kgs)	90
Bearing Type	6202 Double ball bearings













   CP6S-1AS



Model		Wheel Dia.*Width (mm)	Bearing Chamber Diameter	Hub Length	Total Height (mm)	Housing distance (mm)	Bolt hole size(mm)	Load Capacity (KG)
CP6-1AS125.30	CP6-1AF125.30	125*30	8	40	158	41*2.5	M12	90



   CP6S-1AF2



Model	Wheel Dia.*Width (mm)	Bearing Chamber Diameter	Hub Length	Total Height (mm)	Housing distance (mm)	Bolt hole size(mm)	Load Capacity (KG)
CP6-1AF2-125.30	125*30	8	40	158	41*2.5	M12	90







   CP6S-1CS



Model		Wheel Dia.*Width (mm)	Bearing Chamber Diameter	Hub Length	Total Height (mm)	Housing distance (mm)	Bolt hole size(mm)	Load Capacity (KG)
CP6-1CS127.28	CP6-1CF127.28	127*28	8	40	159	41*2.5	M12	90





   CP6S-1CF2



Model	Wheel Dia.*Width (mm)	Bearing Chamber Diameter	Hub Length	Total Height (mm)	Housing distance (mm)	Bolt hole size(mm)	Load Capacity (KG)
CP6-1CF127.28	127*28	8	40	159	41*2.5	M12	90





Customer satisfaction:



High Grade Material：



Ready for shipment：



Delivery & Payment Term:







Do you feel sorry that the caster can't rotate or turn normally, or the caster wheel is broken, the wheel bearing is damaged, the bracket is seriously deformed, the steel ball falls off, and the brake is not flexible? Is the short life caster to achieve the effect of saving time, labor and trouble? So the service life of caster has undoubtedly become the focus of our attention, and the same extension of its service life is also from the use of casters to maintain.



Visual inspection of wheel wear. It is related to the poor rotation of the rope and the red wheel. The anti wrapping cover can shade the entanglement of these sundries. Loose or tight castors are another factor. Replace damaged wheels / casters to avoid unstable rotation. After checking and replacing the wheel, make sure to tighten the axle with locking gasket and nut. Because the wheel axle looseness will cause the wheel frame to rub with the bracket and get stuck. Replacement wheels and bearings should be available to avoid production losses.



If the movable steering is too loose, it must be replaced immediately. If the rivet in the center of caster is fixed by nut, it must be firmly locked. If the movable steering cannot rotate freely, check the ball for corrosion or dirt. If a fixed caster is installed, the caster bracket must be free from bending.



With regular lubricating oil, wheels and movable bearings can be used for a long time. Applying grease to the friction parts of the axle, seal ring and roller bearing can reduce the friction and make the rotation more flexible. Lubrication is normally carried out every six months. The wheels of the car should be lubricated after monthly cleaning.



Tighten the loose axle and nut and check the weld or support plate for damage. Overloading or impact can cause the bracket to twist. The twisted bracket makes the heavy load incline to press on the individual wheel, which leads to the premature failure of the wheel. If it is a plug-in caster, the nut should be tightened or riveted firmly to ensure that the equipment mounting bracket is not bent and the inserting rod is installed correctly. When mounting casters, lock nuts or lock washers should be used. The installation of expansion plug-in castors shall ensure that the inserting rod is firmly installed in the casing.
