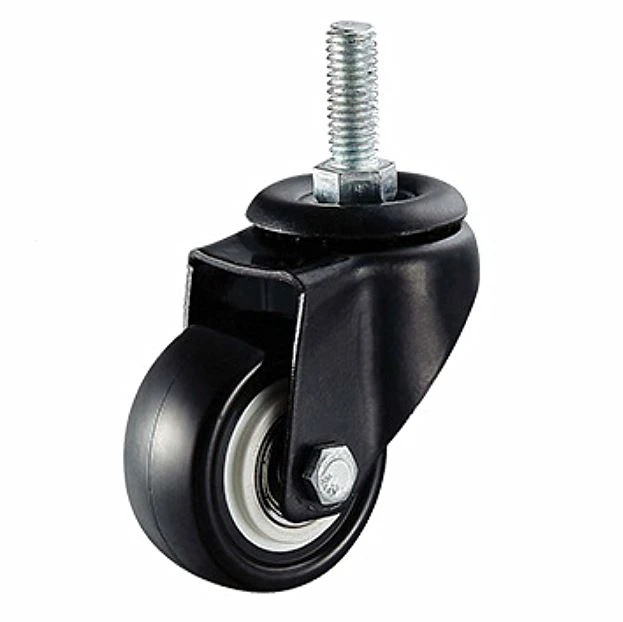

Metal Furniture Casters

Model No.: CP14SS-PPV

Product name: Light duty metal casters

Loading capacity: 60-80KGS

Housing:Made of pressed steel, zinc plated,double ballrace swivel head

Material：pu on pvc

Bearing Type:ball Bearing

Temperature range:-30℃~80℃



So you make metal furniture, huh? Let's talk about those little wheels…

Honestly, most caster suppliers give you the same polished spiel. "High performance… superior quality… durable design." Sounds nice, but then you get the sample and… the stem doesn't fit right. Or the wheel squeaks. Or it rusts in like, six months.



We hear this all the time from our clients. That's why at NINGBO SHANGXIN CASTER, we tweaked our classic small stem caster based on actual complaints. It's not just a "product"-it's basically a fix for common headaches.



Here's the real talk on what changed:

Remember when everyone used PVC wheels? Yeah, so did we. But honestly, PP material just works out better now-lasts longer against scrapes and it's kinder on your budget. That's what we ship as standard. Sizes? 1.5", 2", 2.5". Handles loads between 60-80kg depending on how you use it.

The stem is the real hero though. M8 thread, ready to go. But here's where we adapted: we can customize the stem if you need. Why does that matter? Okay, example time:



A furniture workshop in Foshan was assembling modular metal shelves. Their old supplier's casters had stems that were a hair too short-kept coming loose in the threaded socket. Super annoying, right? Led to wobbly units and mad customers. They switched to ours, gave us their socket depth, we adjusted the stem length slightly. Now they just screw it straight in-no nut needed, no wobble. The boss told us it cut their assembly time down and basically eliminated returns over loose wheels. Simple fix, big difference.



Oh, and that black finish? It's not just paint. It's electrophoretic coating (fancy term, I know). Passes salt spray tests like a champ. So whether it's a humid lab or a trolley that occasionally rolls outdoors, it holds up. We bash them around in our own factory tests-rolling, loading, swiveling-before they even get to you.



Bottom line? We're not saying we're the biggest. But if you need metal furniture casters that actually solve the installation nuisance and don't rust out in a year… we've got your back. You tell us the problem, we'll tweak the solution.

Because good metal furniture casters should make your product better, not give you more trouble.



Keywords: thread stem wheels, PP plastic casters, black anti-rust caster, light duty furniture wheels, adjustable stem casters.





Model	Wheel Dia.*Width (mm)	Total Height (mm)	Housing Thickness (mm)	Stem(mm)	Load Capacity (KG)
CP14SS-PPV40.21	40*21	62	1.5	M8*25	60
CP14SS-PPV50.25	50*25	72	1.8	M8*25	70
CP14SS-PPV63.32	63*32	92	2.3	M8*25	80



Customer satisfaction:





High Grade Material：

Ready for shipment：

Delivery & Payment Term:



Universal wheel is the so-called caster. Universal wheel is a kind of bracket installed on caster wheel, which can rotate 360 degrees horizontally under dynamic or static load. There are many kinds of materials for manufacturing universal wheel, the most common materials are: nylon, polyurethane, rubber, cast iron and other materials. It is widely used in mining, mechanical equipment, electronic equipment, medical equipment, engineering decoration, textile, printing and dyeing, furniture, logistics equipment, storage, turnover vehicle, chassis, cabinet, equipment, electromechanical, dust-free workshop, production line, large supermarket and many other industries and fields. According to its different uses, the bearing is divided into iron core, aluminum core and plastic core, with sizes ranging from 1 inch to 8 inches. The iron core and aluminum core are generally heavy-duty load-bearing wheels, which are often equipped with brake equipment.
