small caster wheels for furniture

Model No.:CP8P-PUP-SPR

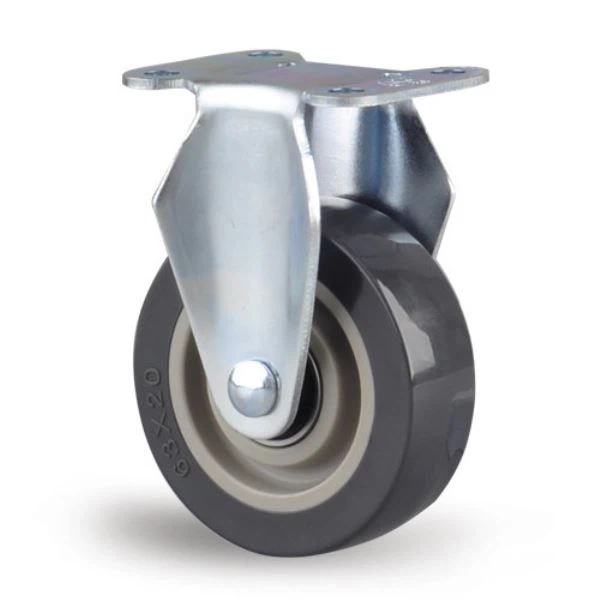

Product name: Small Polyurethane on polypropylene rigid casters

Optional Wheel: Black PP wheel,white nylon wheel and TPR Wheel
Loading capacity: 40~60KGS
Housing:Made of pressed steel, zinc plated

Material：pu on pp

Bearing Type:Double ball Bearing

Temperature range:-30℃~80℃



After sales service：



Specification：

Type	Small Polyurethane on polypropylene rigid casters
Wheel size(mm)	38*20/50*20/63*20
Tread Material	PU
Mounting Height(mm)	60/70/85
Plate Thickness(mm)	2
Surface Treatment	Zinc plated
Tread Color	Gray and blue
Applicable Temperature	-30℃~80℃
Load Capacity(kgs)	40~60
Bearing Type	Ball bearings













Rigid Caster

Model	Wheel Dia.*Width (mm)	Total Height (mm)	Offset (mm)	Top Plate (L*W*T)	Hole Spacing (mm)	Hole Size (mm)	Load Capacity (KG)
CP8P-PUP-SPR38.20	38*20	60	/	54*44*2	40/30*40/30	6.2	40
CP8P-PUP-SPR50.20	50*20	70	/	54*44*2	40/30*40/30	6.2	50
CP8P-PUP-SPR63.20	63*20	85	/	54*44*2	40/30*40/30	6.2	60



Customer satisfaction:





High Grade Material：



Ready for shipment：



Delivery & Payment Term:





Although castor casing is a small component, it is closely related to people's daily life and industrial production, and the market has been showing a good prospect. In recent years, the sales growth has continued to rise.



The development of castor casing industry is a systematic project, and supporting the efficient operation of this system should include at least the following five aspects: first, financial support. Castor casing industry is a typical capital intensive industry. To form scale economy, it needs to reach a certain investment threshold. With the improvement of technology level, the investment threshold is rising. At the same time, in order to meet the needs of process research and development, capacity expansion and upgrading, the integrated circuit industry needs to continue to invest.



Second, market support. If IC enterprises want to survive, they must produce products that meet the market demand, continuously obtain orders from customers, and establish a sales team and sales network facing the global market. Third, technical support. We should have advanced technology, first-class chip design ability, and a number of independent intellectual property rights and patents.
