Swivel Leveling Mounts For Laser Welding System

MB-SW00-C – What Six Years and 350,000 Units Look Like in a Leveling Foot

You don't really notice a leveling foot until it fails. And when it fails-on a conveyor line, under a dough divider, or beneath a heavy stainless table-it fails loudly. Wobble. Chatter. Rust streaks running down the leg. Or worse, a thread that just won't catch because some supplier thought "M6-ish" was close enough to whatever the original spec called for.

We see this every week. And that is why, back in 2020, we decided to stop offering "compatible" feet and start building an exact replica of the McMaster-Carr reference design-not just in dimension, but in feel, finish, and long-term stability. The result is our MB-SW00-C (yes, that's the factory code, but frankly, most customers just order it by saying "the yellow one with the smooth ball").

The Numbers That Actually Matter

Let's skip the marketing fluff. Here is what we know for sure, because we track every single piece that leaves our door:

350,000+ units of this specific style sold since launch. Not "across the whole catalog"-just this one configuration.

Six consecutive years shipping to the same North American customer base. Not a single lost account due to quality deviation.

15% year-over-year growth on this SKU alone, which tells us that repeat buyers are bringing in new divisions, new plants, and new competitors who finally got tired of their old source.

200 kg static load per foot-tested, not estimated. That is roughly 440 lbs in real-world use, with a safety margin that we do not advertise but we build in anyway.

If those numbers sound like we are bragging, we are not. We are just tired of seeing engineers waste time on feet that cannot hold a straight line after six months.

What "Imperial Spec" Actually Means Here

The thread is M6 on paper, but the pitch, the flank angle, the stud length (19 mm), and the base diameter (25 mm) are all held to imperial-equivalent tolerances. Translation: if your mounting hole was drilled with an inch-based tool, this foot goes in like it was made for that hole. Because it was.

The tilt angle? Also imperial. The ball joint's rotational clearance? Imperial. We did not metric-convert a McMaster drawing and call it a day-we took the original inch-based dimensions and replicated them on our tooling. No adapter bushings. No re-tapping. No excuses on the shop floor.

The Ball Joint Thing – Why Ours Feels Different

We have handled plenty of samples from other factories. Most of them have one thing in common: the ball head looks smooth until you rotate it under load. Then you feel it-that gritty, grinding sensation that tells you the machining left micro-ridges behind.

Our process adds a secondary polishing pass that most suppliers skip because it costs time and wears out tooling. But it removes those ridges. The result is a ball joint that rotates with a fluid, silent motion-no chatter, no stick-slip, no "did I just break something?" moments. For maintenance crews who adjust leveling feet every quarter as floors settle, this smoothness translates into real fatigue reduction. And for the equipment itself, it means less abrasive wear inside the joint, so the foot stays tight and level longer.

Yellow Zinc – The Part Nobody Sees Until It Peels

We have seen competitors' plating fail after three washdown cycles. Not ours. The yellow zinc on our feet goes through a controlled bath process with consistent current density, so the coating thickness is uniform across the entire surface-including the underside of the base and the root of the threads. No thin spots. No flaking. No oxidation creeping in from the edges.

Food plant sanitation teams appreciate this more than anyone. When you hit these feet with hot caustic solution at 80 psi, the finish stays intact. No rust trails. No zinc dust contaminating the floor. Just a clean, stable foot that looks as good after a year as it did on day one.

One More Thing About That "35万只" Number

That is not a cumulative total of all our products. That is just this one model-the MB-SW00-C. And we did not achieve that number by being the cheapest. We achieved it by being the most consistent. Every batch that goes to North America is inspected against the same sample standard we set six years ago. Thread gauges, profile projectors, and salt-spray tests are not optional here. They are routine.

Customers who started with a trial order of 200 pieces are now ordering 5,000 pieces per quarter. Not because we discounted heavily-we didn't-but because they stopped having to inspect every shipment. They just unbox, install, and forget about it until the next machine arrives.

#levelingfeet #machines #handlingequipment #zincplatedlevelingfeet#automation #casters #levelingpad

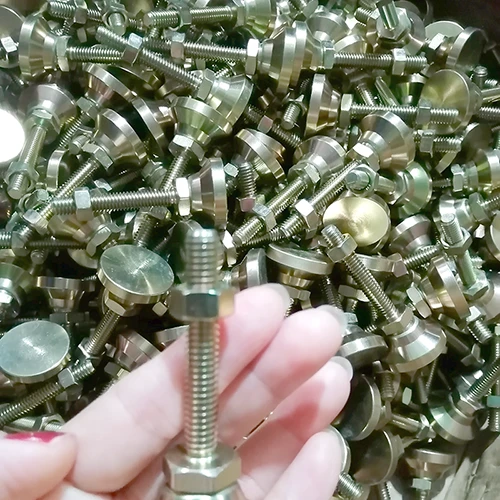

Model: CP327KCUF-6.25-19

Surface Treatment: Yellow Zinc plated

Material: Screw and chassis are all made of carbon steel

Artwork: Screw and chassis are machined and connected by ball joint.

Customer satisfaction:

FAQS:

Q1. Will these feet fit American equipment without modifications?
Yes. All key dimensions – thread, length, base, and angle – are held to imperial-equivalent standards, so they match standard North American mounting holes.

Q2. Can they handle frequent washdowns in food plants?
Yes. The yellow zinc coating is uniform and resists peeling, pitting, and corrosion from detergents and hot water.

Q3. What load does each foot support?
200 kg (440 lbs) per foot, with a built-in safety margin – suitable for heavy industrial machinery.

Q4. What makes your ball joint smoother than others?
We add an extra polishing step that removes machining marks, so rotation feels fluid – no chatter, no grinding, and less wear over time.

Q5. Do you offer custom lengths or finishes?
Yes. As a factory with full in-house production, we can adjust stud lengths, base sizes, or plating for volume orders.

6. How do you keep quality consistent across large batches?
We use ISO 9001:2015 controls with in-process inspections, and our six-year North American delivery record proves minimal batch-to-batch variation.

Any further questions please kindly let us know by sales@shangxincaster.com or whatsapp + 86 152 5836 8162
