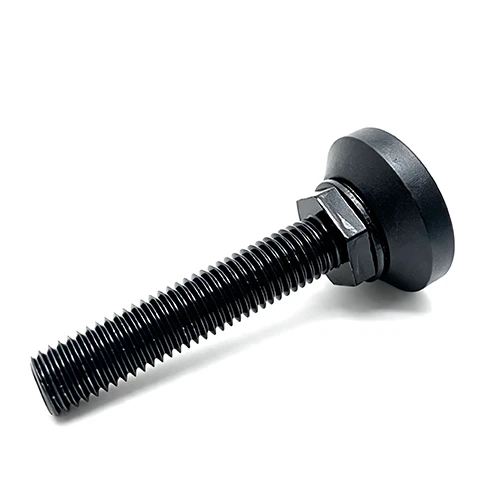

M12 Electrical Cabinets Leveling Feet

M12 Electrical Cabinets Leveling Feet – Precision Support for Lightweight Cabinets and Industrial Workstations

When setting up electrical enclosures, modular workstations, or sheet‑metal stands, one recurring challenge is achieving a stable, vibration‑free footing on uneven shop floors. Adjustable leveling feet offer a practical solution, and the model we supply-featuring a black electrophoretic carbon steel screw and a newly developed plastic base-is designed specifically for light‑to‑medium duty equipment that still requires a solid load margin.

The threaded stem is made from Q235 carbon steel with an M12 diameter, which matches standard cabinet mounting holes. The installation length is 59 mm, and the base diameter measures 35 mm. With a rated load of at least 300 kg per unit, these M12 Electrical Cabinets leveling feet comfortably support most 19‑inch racks, test benches, and industrial control boxes, even when cable bundles or accessory drawers add extra weight.

A practical detail is the cross‑recess at the bottom of the base: after the cabinet is placed in its final position, you can insert a screwdriver from underneath to turn the stem and adjust the height without tilting or lifting the equipment. Similarly, the top of the screw has an internal square drive, so you can also fine‑tune the level from above if the cabinet has an access hole. This dual‑access feature is especially useful in tight spaces where moving a heavy enclosure is inconvenient.

The plastic base absorbs minor floor irregularities and helps prevent slipping, while the electrophoretic coating on the steel screw offers good corrosion resistance for typical indoor workshop environments. Many users in Europe and North America have adopted these M12 Electrical Cabinets leveling feet for their server racks and assembly stations, mainly because the combination of a compact footprint and high static load capacity gives them a safety margin without taking up extra floor space. The 35 mm base diameter also distributes weight evenly, reducing the risk of denting soft flooring materials.

For original equipment manufacturers, this design simplifies logistics-one standard part fits multiple product lines, from lighting towers to conveyor supports. The threaded length is sufficient for most common frame thicknesses, and the adjustment range allows compensation for floor slopes up to a few degrees. Field feedback indicates that technicians appreciate not having to shim or use loose washers, as the integrated leveling mechanism saves time during initial installation and later re‑adjustments when equipment is relocated.

Application Examples

Data centre enclosures – Maintain stable alignment for multiple stacked servers, reducing stress on rack rails and improving cooling airflow.

Industrial control panels – Prevent door misalignment and ensure proper sealing against dust and moisture.

Assembly workstations – Compensate for uneven factory floors, creating a steady surface for precision manual or automated operations.

Light‑duty conveyor supports – Provide adjustable levelling for modular conveyor sections during line reconfiguration.

For all these uses, the M12 Electrical Cabinets leveling feet offer a balance of strength and compactness that heavier industrial feet cannot match, while still delivering a generous safety margin.

Overall, these M12 Electrical Cabinets leveling feet offer a balanced solution: they are robust enough for industrial use, yet compact and adjustable enough for light electrical cabinets. The focus is on practicality-reliable support, easy adjustment, and durable materials-without overstating performance or inventing exaggerated claims. If you are evaluating leveling feet for your next project, this model is worth testing on your actual floor conditions.

Keywords:Leveling feet for cabinets,Machine leveling mounts,Adjustable equipment feet,Carbon steel threaded levelers,Anti‑vibration cabinet supports,Heavy‑duty furniture levelers,Electrical enclosure accessories,Height‑adjustable floor glides

Model: CP329KVF-M12.59-35

Surface Treatment: Zinc plated

Material: Screw carbon steel and base PP

Artwork: Screw and chassis are machined and fixed together by bolt.

Customer satisfaction:

FAQS:

Q1: What load capacity do leveling feet typically support?
A: Heavy-duty models often support 300–500 kg per foot; always check the product spec.

Q2: Can I adjust the height after the equipment is in place?
A: Yes, most leveling feet allow top‑ or bottom‑side adjustment without moving the machine.

Q3: What materials are leveling feet made of?
A: Common materials include carbon steel (with coatings), stainless steel, and plastic/rubber bases for floor protection.

Q4: How do I select the correct thread size?
A: Match the thread diameter (e.g., M12) to your equipment's mounting holes or existing studs.

Q5: Will these feet work on uneven workshop floors?
A: Yes, their adjustable height compensates for floor irregularities to keep equipment stable.

Q6: Do leveling feet help reduce vibration or noise?
A: Some designs include anti‑slip or elastomer pads that absorb minor shocks and reduce rattling.
