Heavy Adjustable Workstation Casters
video

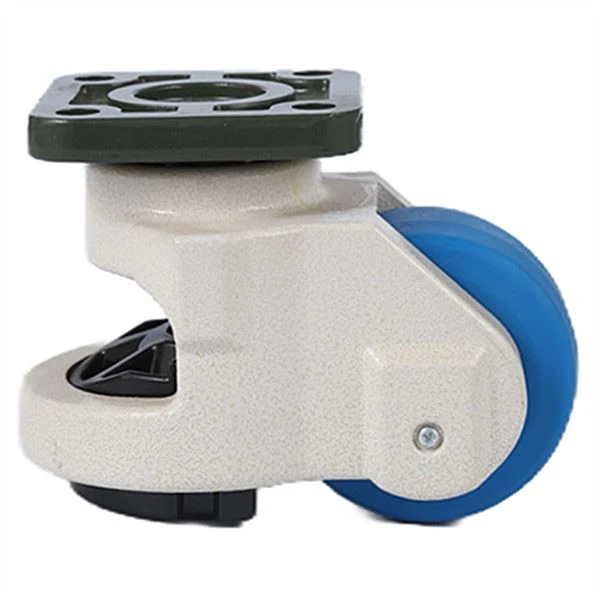

Heavy Adjustable Workstation Casters

Model# GD150F
Certs: ISO9001:2015, ROHS and REACH205 Compliant, Emvironmental friendly protection testing
Application:machines, automations, stands, medical equipment, lab equipment, airconditioning containers, pool tables, home and office furnitures, mould machines, precision apparatus, computer racks, tool cabinets, wholesale containers, work stations, contifuge , testing chamber, workbench and many other areas.
Product Introduction

Model No.: CP81-GD-150F


Today, I have made an appointment with you to introduce the remaining casters, that is, Fu Ma casters and compound casters! Among them, Forma Wheel can be installed according to Workstations, which is called Heavy Adjustable Workstation Casters. Let's go and have a look!

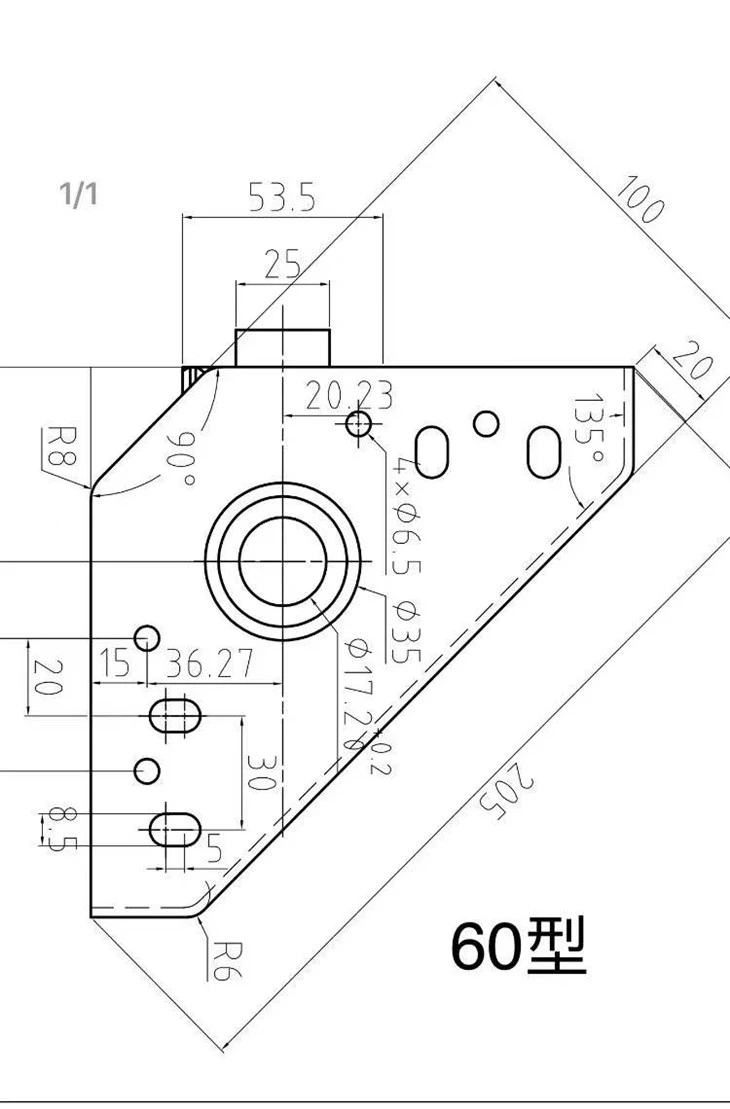

Heavy Adjustable Workstation Casters Item No.: GD150F-Formosa Caster. Specifications are as follows: a, GD-40F horse caster. B, GD-60F horse caster. C, GD-80F horse caster. Note: The price is the unit price of small specifications. Please consult customer service if you need large specifications. Please indicate the specifications when taking pictures, and the model size refers to the wheel diameter. Application Description: It is suitable to be installed on the bottom of workbench or equipment. According to the load capacity of frame and workbench, the corresponding specifications and models can be selected to make it move freely. According to the use situation, some parts need to use connecting plates for transition connection, and connecting plates need to be equipped separately.


One of the characteristics of Heavy Adjustable Workstation Casters is that the load is extremely large, and Forma wheels with different loads can be selected according to different equipment. Usually the load ranges from 50 kg to 1500 kg. The biggest feature is that the base is made of NBR nylon material, and the base is smooth and semicircular, which can freely expand and contract from top to bottom. The telescopic distance can reach 10-20mm. When transporting equipment, we can adjust the base;When fixing the equipment, the base can be adjusted downwards, so as to stabilize the center of gravity of the Forma wheel and achieve the function of stabilizing the whole equipment. Our Forma wheel is not only tested by equipment, but also measured by equipment. After testing, our company will provide samples for testing free of charge according to customers' requirements. Satisfy the competitiveness of customers.


These Heavy Adjustable Workstation Casters are widely used in machines, automations, stands, medical equipment, lab equipment, airconditioning containers, pool tables, home and office furnitures, mould machines, precision apparatus, computer racks, tool cabinets, wholesale containers, work stations, contifuge , testing chamber, workbench and many other areas.


Not only in terms of price, quality, but also in terms of service provision, Shangxin Company has greatly met the diverse needs of customers.




Specification:

Type

MC Nylon wheel leveling casters

Wheel size(mm)

90*55

Tread Material

MC Nylon

Mounting Height(mm)

132

Plate Thickness(mm)

8.5

Surface Treatment

Baseboard:carbon steel calcining

Adjust:Stainless steel

Housing:Aluminium alloy

Base:Aluminium alloy

Wheel:M C Nylon

Foot: Aluminium alloy

Color

Milk white/coffee

Applicable Temperature

-15℃~70℃

Load Capacity(kgs)

1500

Bearing Type

Sliding bearings





CP81-GD-150F Series

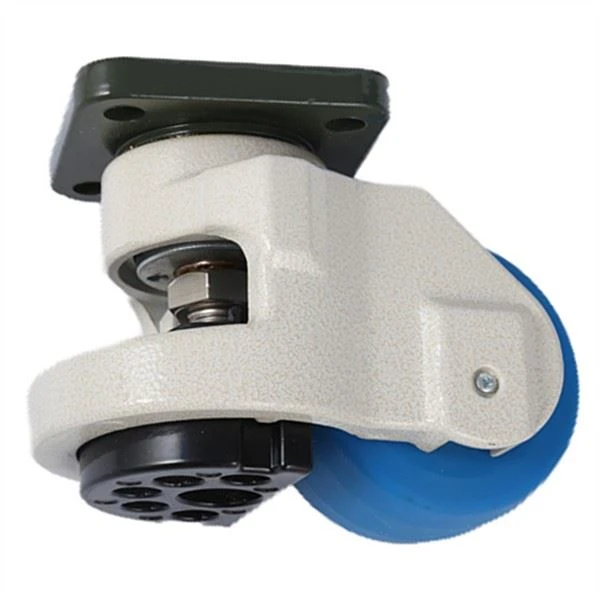

GD 150F Leveling casters (2)GD 150F Leveling casters

Model

Wheel dia(mm)

Tread width(mm)

Mount height(mm)

Top-plate thickness(mm)

Top-plate size(mm)

Top-plate hole distance(mm)

Hole size(mm)

Adjust ground height(mm)

Single wheel load(mm)

4 wheel load(KGS)

CP81GD-150F

90

55

132

8.5

100*100

70*70

13

15

1500

3000

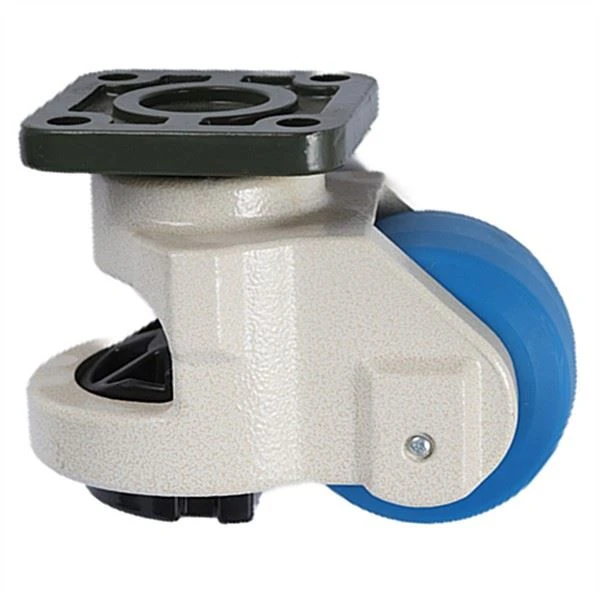

GD150F leveling castersGD150F leveling casters (2)

leveling casters structures

Ratchet Casters

foot operated casters

nylon based foot leveling casters

self adjust leveling casters

aluminum leveling casters

250kgs leveling casters

750 kgs height adjustable casters

500kgs leveling casters

1000kgs leveling casters



Testing and Certificate



(1) Lelveing Caster REACH205 COMPLIANT TESTING REPORTS by Europe and North America Authority Approved, Environment friendly compatible when being applied for wholesales, distribution and terminal application.

REACH205 COMPLIANT TESTING REPORT (2)REACH205 COMPLIANT TESTING REPORTREACH205 COMPLIANT TESTING REPORT (3)



(2) Lelveing Caster ROHS TESTING REPORTS by Europe and North America Authority Approved

ROHS TESTING REPORTROHS TESTING REPORT (2)
