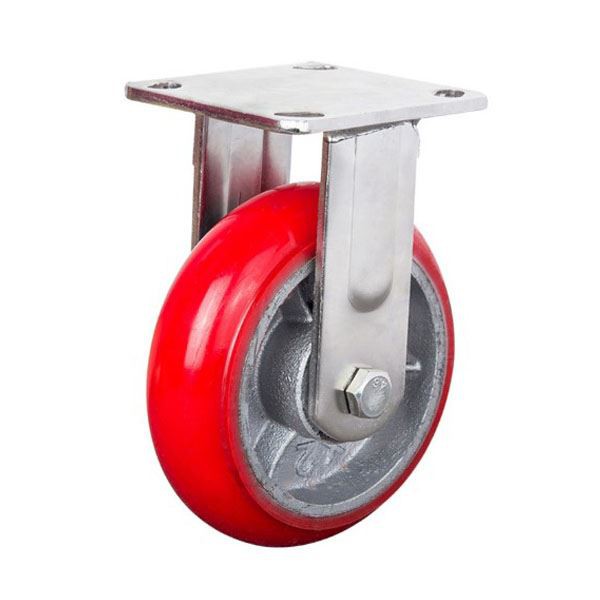

Round PU Tread Iron Core Fixed Casters

Model No.: CP47R-RPC

Product name: Round PU on Cast Iron Casters

Loading capacity: 250~600KGS





Overview:

This high-quality round edged polyurethane cast iron caster has the ultimate durability and can move smoothly on a variety of surfaces. Pressed steel double ball bearings are designed to withstand strict use. The heavy-duty design makes the caster an ideal choice for trolleys used in factories, engineering projects, automobile factories, textile factories, etc. Casters are sold separately and each caster supports up to 600kgs.





Features:

This Round PU Tread Iron Core Fixed Casters belongs to the Korean caster series. It has the following advantages and features

1 PU wheel surface, with high strength and wear resistance, and the thickened PU surface further extends the service life of the wheel surface. Compared with the smooth wheel surface of the same size, the service life can be extended by 1/3.

2 The fixed style bracket has no bearing double glass plate and no more complicated structure. In addition, both sides of the bracket have been centrally welded, so that the entire bracket can have a greater load capacity than the movable caster; so we usually reduce the thickness of the fixed bracket a little bit, and under the same load condition, it can reach the same load as the movable caster, which greatly saves the procurement cost;

3 We customize the hardness of the PU wheel surface according to customer requirements, and the hardness can reach 98 SHORE A level, which will save time and effort.



Application:

Our industrial round PU iron core casters are widely used in material handling equipment, warehouse, auto-mobile factory, hand trolleys, medium or heavy duty carts and wast containers, also widely used on medium-duty to heavy duty cart, equipment,conveyors, portable work stations, Platform truck and other equipment.











Rigid Caster

Model	Wheel Dia.*Width (mm)	Total Height (mm)	Swivel Radius (mm)	Top Plate (L*W)	Hole Spacing (mm)	Hole Size (mm)	Housing Distance(mm)	Bearing Type	Load Capacity (KG)
CP47R-RPC100.50	100*50	135	/	100*115*6	72*85	20*13	63*6	Ball bearing	250
CP47R-RPC125.50	125*50	159	/	100*115*6	72*85	20*13	63*6	Ball bearing	350
CP47R-RPC150.50	150*50	189	/	100*115*6	72*85	20*13	63*6	Ball bearing	500
CP47R-RPC200.50	200*50	238	/	100*115*6	72*85	20*13	63*6	Ball bearing	600

Customer satisfaction:





High Grade Material：



Ready for shipment：



Delivery & Payment Term:



RFQ



1. Sample:
It is our pleasure to send you our stock sample, for stock sample , we will arrange to send out in 1-3 days.

2. Delivery Time:
Usually it will take 7-30 days for the production, which is based on your order quantity, designs on products & packages.

3. Payment:
For the sample, we can accept TT,
For mass production, we accept TT (30% deposit & 70% banlance before shippment)

4.Shipping
DHL, UPS, Fedex, TNT ,EMS, DTDC etc.
We will choose the safe and cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport.
For mass order, shipping by sea or by air transport will be good choice

5. Online Service:
