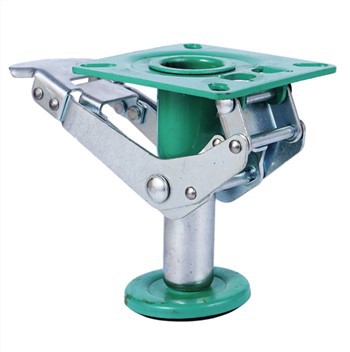

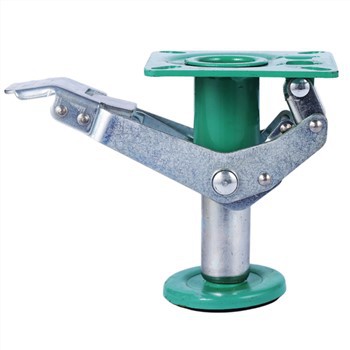

6 Inch Trolley Stopper Floor Locks

Model No.: CP301







Introduction：



6 inch Trolley Stopper Floor Locks are designed to hold the load on a flat surface. Floor locks are in no way designed to lift loads. Its specific purpose is to apply pressure to the floor through the rubber pad at the bottom of the floor lock. Our floor locks are spring loaded, which allows the shoe to move a little further than roller height when the pedal is depressed.



The typical location for 6 inch Trolley Stopper Floor Locks is between swivel casters at one end of the unit, but they can be installed at either end of your equipment depending on your design. Floor locks are designed for use on level surfaces and are not recommended for use on sloped surfaces.



When choosing a 6 inch Trolley Stopper Floor Locks, it is important to choose a floor lock that releases the floor when retracted. To adapt the floor brake to your equipment, we recommend that you select a model with an extended height that is 1/16″-1/4″ larger than the overall height of the rollers you are using.







Specification：

Type	Industrial heavy carts 6 inch Pedal Locks
Size	4,5,6,8 inch
Material	Steel with rubber base
Color	Silver with green
Applicable Temperature	-60℃~100℃
Load Capacity(kgs)	250-300



Model	Size(inch)	Extended Height (mm)	Retracted height(mm)	Top plate Size (mm)	Top plate hole spacing(mm)	Top plate hole zise (mm)	Load Capacity (kgs)
CP301FLJ-4	4	151	125	120*120	85*85 100*100	11	250-300
CP301FLJ-5	5	180	154	120*120	85*85 100*100	11	250-300
CP301FLJ-6	6	210	170	120*120	85*85 100*100	11	250-300
CP301FLJ-8	8	255	215	120*120	85*85 100*100	11	250-300





Customer satisfaction:



High Grade Material：



Ready for shipment：



Delivery & Payment Term:





FAQS:



Q1: Are you factory or only company?

We are a manufacturer with over 50 workers



Q2: Why we can choose you?
1) Professional-- We have worked in the this industry for more than 10 years,our products have been tested by 1500+ clients.
2) Reliable -- We are a real factory, we follow principle of win-win.

3) Competitiveness -- All products are made within our factory, short links of transaction is going to save your money.



Q3: How about the shipping cost?

We will give you options on different shipping way for your selection depending on your order



Q4: How about the price?

Final quotation is according to receiving full description of the product you want, size, material, quantity etc.



Q5: How about the sample time? What about the payment?
The sample will arrive on your hands after your payment done 7-15 days.
T/T, 30% deposit, balance before shipment, we can accept flexible payment by West Union, Paypal, Credit card etc.



any questions please contact by email sales@shangxincaster.com whatsapp: +86 152 5836 8162







When we use the lifter, it needs to be placed under the cart, which can be freely retracted, and the cart can be stopped and pushed up. Then let's briefly understand the working principle of the cart.
When pushing the cart, the direction of the force is pointing obliquely downward, and it produces two component forces: one component is forward, used to overcome the resistance and make the car move forward; the other component is vertically downward, increasing the force of the car against the ground. Pressure increases resistance. When pulling a cart, the direction of the force is pointing upwards, which also produces two component forces: one component is forward to overcome the resistance; Small. Therefore, pulling the cart saves effort.
