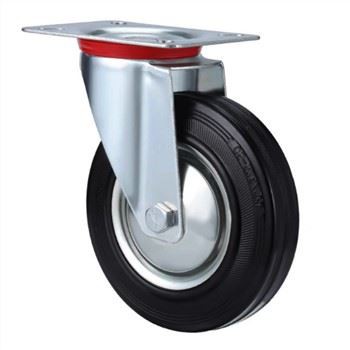

Waste Container Casters With Brake



Specification：

Type	Waste container casters with brake
Wheel size(mm)	75*25/80*25/100*25/125*37/160*50/200*50
Tread Material	Industrial rubber
Mounting Height(mm)	97~235
Plate Thickness(mm)	3.5
Surface Treatment	Zinc plated
Tread Color	Black
Applicable Temperature	-20℃~60℃
Load Capacity(kgs)	45~205
Bearing Type	Roller bearings





Double Brake Caster

Model	Wheel Dia.*Width (mm)	Total Height (mm)	Top Plate (L*W)	Hole Spacing (mm)	Bearing (mm)	Load Capacity (KG)
CP53T-RS75.25	75*25	97	75*60	60*50	Roller	45
CP53T-RS80.25	80.25	105	102*82	80*60	Roller	55
CP53T-RS100.25	100*25	128	102*82	80*60	Roller	70
CP53T-RS125.37	125*37	155	102*82	80*60	Roller	100
CP53T-RS160.50	160*50	195	135*110	105*75	Roller	150
CP53T-RS200.50	200*50	235	135*110	105*75	Roller	205







High Grade Material：







Garbage can wheel, garbage can wheel, sanitation --- manufacturer of garbage can wheel



According to the bearing and use purpose, waste container casters with brake be divided into: light caster, medium caster, heavy caster, brake caster, shock-absorbing caster, adjustable screw caster, super heavy caster, extra heavy caster, etc.

Caster application industry: industrial, commercial, mobile bed and handling and moving of machinery, logistics and transportation, cleaning products, furniture industry, beauty equipment, food machinery, hardware production and other industries.

Structural features of Waste container casters with brake: installation height: refers to the vertical distance from the ground to the equipment installation position, and the installation height of castor refers to the vertical distance far from the bottom plate of castor and the edge of wheel. Support steering center distance: refers to the horizontal distance from the vertical line of the central rivet to the center of the wheel core.

The foot wheel of the trash can is the so-called movable caster. Its structure allows 360 degrees of horizontal rotation. Caster is a general term, including movable caster and fixed caster. The fixed caster has no rotating structure, can not rotate horizontally, but can only rotate vertically. These two castors are generally used together. For example, the structure of the trolley is two fixed wheels in the front, and two movable universal wheels close to the push handrail in the rear. Universal wheel refers to the support installed on the caster wheel, which can rotate horizontally 360 degrees under dynamic or static load.

There are many kinds of materials for making universal wheels. The common materials are nylon, polyurethane, rubber, cast iron and so on. It is widely used in many industries and fields such as mining, mechanical equipment, electronic equipment, medical equipment, engineering decoration, textile, printing and dyeing, furniture, logistics equipment, storage, turnover vehicle, chassis, cabinet, equipment, electromechanical, dust-free workshop, production line, large supermarket and so on. According to their different uses, bearings are divided into iron core, aluminum core and plastic core, with sizes ranging from 1 inch to 8 inches.
