Model No.: CP7C-SPU

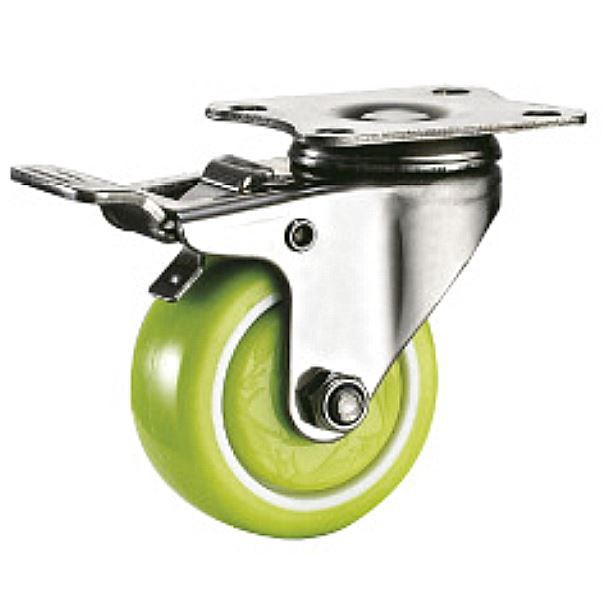

Product name: Light Duty PU Medical Castors for Trolleys
Optional Wheel: NA
Loading capacity: 30~50KGS
Housing: Stainless steel
Wheel Material：PU on PP wheel
Bearing Type:Ball Bearings
Temperature range:-40℃~80℃
1 Customers who purchase casters in our company can enjoy free maintenance for 1-3 years
2 Our company guarantees 7 * 16 hours of service, quickly responds to customers' questions and customized needs within 12 hours which we could produce according to photos, samples or CAD
3 For special projects, the company will provide remote guidance or on-site operation guidance
4 20000-40000pcs per week
5 Samples delivery in 7 days, for special case of OEM, we need 15 days to finalize the project.
Specification：
Type | |
Wheel size(mm) | 40*20/50*22 |
Tread Material | PU |
Mounting Height(mm) | 60.5/70.5 |
Plate Thickness(mm) | 2 |
Surface Treatment | Stainless steel |
Tread Color | Green |
Applicable Temperature | -40℃~80℃ |
Load Capacity(kgs) | 20~50 |
Bearing Type | Ball bearings |
Swivel,fixed and swivel with brake
CP7C-SPU-SPS CP7C-SPU-SPR CP7C-SPU-SPB
Fitting Dimension
Size | Height of installation | Rotating radius | Plate thickness | Bracket |
|
|
|
|
|
1.5 inch | 60.5 | 45 | 2/2 | Polish |
2 inch | 70.5 | 49.5 | 2/2 | Polish |
Specification:
Size | Wheel diameter | Wheel width | Loading Capacity | Bearing | Material |
|
|
|
|
|
|
1.5 Inch | 40 | 20 | 30 | 6000 | PU |
2 Inch | 50 | 22 | 50 | 6000 | PU |
Size Details:
Customer satisfaction:
High Grade Material：
Ready for shipment：
Delivery & Payment Term:
