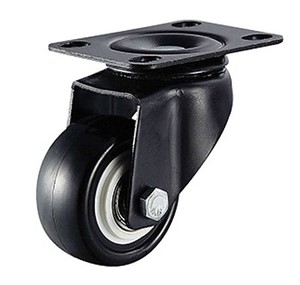

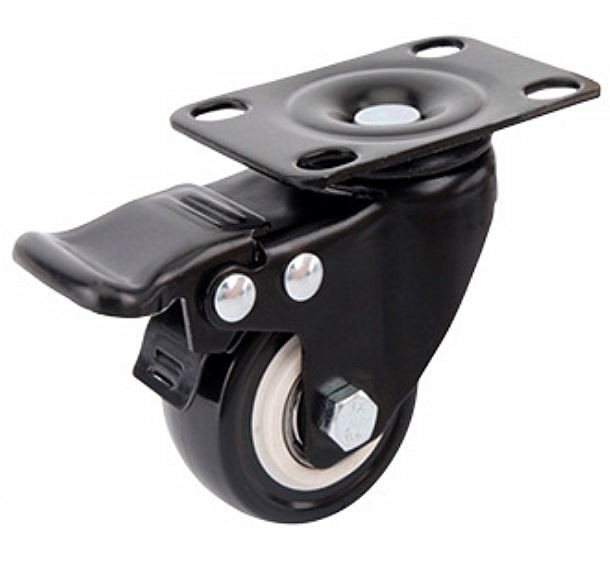

Light Duty Furniture Casters

Model No.: CP14S-PPV

Product name: Light duty furniture caster wheels

Loading capacity: 60-80KGS

Housing:Made of pressed steel, zinc plated,double ballrace swivel head

Material：pu on pvc

Bearing Type:ball Bearing

Temperature range:-30℃~80℃



Specification：

Type	1/1.5/2.5 Inch light duty casters
Wheel size(mm)	40*21/50*25/63*32
Tread Material	PU
Mounting Height(mm)	62/72/92
Plate Thickness(mm)	1.5/1.8/3.0
Surface Treatment	Zinc plated
Tread Color	Black
Applicable Temperature	-30℃~80℃
Load Capacity(kgs)	60~80
Bearing Type	Ball bearings



Model	Wheel Dia.*Width (mm)	Total Height (mm)	Housing Thickness (mm)	Top Plate(mm)	Hole Spacing(mm)	Load Capacity (KG)
CP14S-PPV40.21	40*21	62	1.5	60*43*1.5	45*30	60
CP14S-PPV50.25	50*25	72	1.8	50*25*1.8	52*35	70
CP14S-PPV63.32	63*32	92	2.3	93*62*3	72*45	80



Customer satisfaction:





High Grade Material：

Ready for shipment：

Delivery & Payment Term:



With the development of industrial automation at any time, wheels have become indispensable accessories for equipment and transfer tool cars in various industries. The main characteristics of anti impact heavy-duty wheels are the unique design of bracket, bearing type riveting, carburizing and quenching treatment of bracket, flexible rotation under high load, resistance to external impact, and guarantee the overall service life of products.

The following is an overview of terms related to wheel load:

Driving load: the load-bearing capacity of the casters when they are moving is also called dynamic load. The dynamic load of the casters varies with different test methods in the factory,The key is whether the structure and quality of the bracket can resist impact and vibration.

Impact load: the instantaneous bearing capacity of the caster when the equipment is impacted or vibrated by the load. Static load static load static load static load: the weight that a caster can bear at rest. In general, the static load should be 5-6 times of the running load (dynamic load), and the static load should be at least 2 times of the impact load.

Steering: hard, narrow wheels are easier to turn than soft, wide wheels. Turning radius is an important parameter of wheel rotation. Too short turning radius will increase the difficulty of steering, and too large turning radius will lead to wheel shaking and life shortening.

Driving flexibility: the factors that affect the driving flexibility of casters include the structure of the bracket and the selection of the bracket steel, the size of the wheel, the type of the wheel, the bearing, etc. the larger the wheel, the better the driving flexibility. On the smooth ground, the hard and narrow wheels are less labor than the soft wheels with flat edges, but on the uneven ground, the soft wheels are less labor, but on the uneven ground, the soft wheels are better Protect the equipment and avoid shock.

The new anti impact heavy duty caster has a bearing range of 400-500kg and a wheel diameter of 5-8 inches. It can be equipped with nylon wheel and blue elastic wheel
