Caster Wheels Workbench

Model No.: CP9P-PUP-SPB100.25

Product name: 4 Inch Light Duty PU Swivel Casters with Brake for Trolleys

Optional Wheel: Black PP wheel,white nylon wheel and TPR Wheel
Loading capacity: 90KGS
Housing:Made of pressed steel, zinc plated,double ballrace swivel head

Material：pu on pp

Bearing Type:Single ball Bearing

Temperature range:-30℃~80℃



Introduction:











Specification：

Type	4 Inch PU on PP Swivel Casters Total Brake
Wheel size(mm)	100*25
Tread Material	PU
Mounting Height(mm)	126
Plate Thickness(mm)	2.5
Surface Treatment	Zinc plated
Tread Color	Gray and blue
Applicable Temperature	-30℃~80℃
Load Capacity(kgs)	90
Bearing Type	Ball bearings





Double Brake Caster

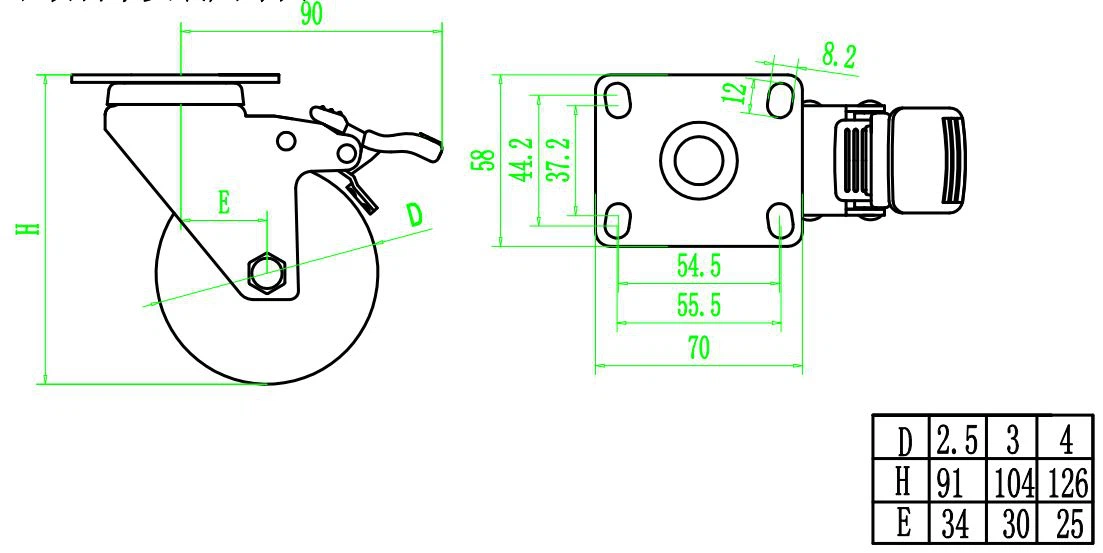

Model	Wheel Dia.*Width (mm)	Total Height (mm)	Offset (mm)	Top Plate (L*W*T)	Hole Spacing (mm)	Hole Size (mm)	Load Capacity (KG)
CP9P-PUP-SPB100.25	100*25	126	25	70*58*2.5	55.5/54.5*44.2/37.2	8.2	90





Customer satisfaction:





High Grade Material：



FAQS:



Q1: Are you trading company or manufacturer?

We are manufacturer in Ningbo, and with more than 13 years experianced in export business,  we have several cooperated factories which can offer you very professional service, good factory price, variety new and interesting products, perfect technology support. Please cooperate with us and you worth it!



Q2: How do you address the defective products?
We respect all the feedbacks from our customers. Please feel free to let us know if you meet any problem. We provide one year warranty for our products. If you find defectives, just let us know the quantity and provide us some pictures and videos. We will provide replacement for spare parts and full machine in the next order.

The pictures and videos also can help us to check what the problem is and how to avoid in the future orders.



Q3:Can I get some samples? And what is the timing?

A:Yes, samples are available at any time. We charge some sample cost and will return it during the next order, or sometime we charge for free when neccessary.



Q4:Where is your factory? Can I visit?

A:Our factory is located in Ningbo, Zhejiang. Only 2-3 hours drive to Hangzhou or Shanghai. Warmly welcome you to visit us whenever you are available.



Q5:Are you a manufacturer or trading company?

A:We are manufacturer. Our factory has been specialized in all kinds of caster wheels since 2015.













Any further questions please kindly let us know by sales@shangxincaster.com or whatsapp + 86 152 5836 8162







It can be seen that the stress point of the swivel caster is not in the center of the caster. Why eccentric, it takes more effort, otherwise you can't rotate without eccentricity. The "concentric ring" can turn without external force. This prevents cars from going straight. The line is wobbly, but the eccentric design of the wheel is to increase the torque, the greater the eccentric rotation, the more work it takes.

The rolling direction of the casters should be consistent with the forward direction. If the forward direction of the trolley does not match the rolling direction of the casters, the frictional force of the ground will generate a moment on the rotating shaft, and push the universal wheels to the same position as the walking direction through the steel balls. rotate.

Generally, casters are installed with directional wheels, and the back is swivel casters, which control the direction. The directional wheels are used for walking, with small torque and strong force, but there are swivel casters in front of the stroller, like a supermarket shopping cart. . The four casters are swivel casters, which are caused by the use environment and habits.
