4 Inch PU Casters

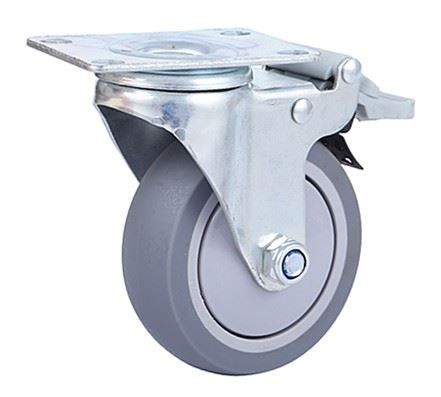

Product name: 4 Inch PU on PP Swivel Casters Total Brake
Applications:furnitures, movers, handling material, medical, racks, cabinets, stands etc.
Specification：
|
Type |
4 Inch casters for CANNABIS |
|
Wheel size(mm) |
100*25 |
|
Tread Material |
PU |
|
Mounting Height(mm) |
126 |
|
Plate Thickness(mm) |
2.5 |
|
Surface Treatment |
Zinc plated |
|
Tread Color |
Gray and blue |
|
Applicable Temperature |
-30℃~80℃ |
|
Load Capacity(kgs) |
90 |
|
Bearing Type |
Ball bearings |
Double Brake Caster
|
Model |
Wheel Dia.*Width (mm) |
Total Height (mm) |
Offset (mm) |
Top Plate (L*W*T) |
Hole Spacing (mm) |
Hole Size (mm) |
Load Capacity (KG) |
|
CP9P-PUP-SPB100.25 |
100*25 |
126 |
25 |
70*58*2.5 |
55.5/54.5*44.2/37.2 |
8.2 |
90 |
Customer satisfaction:
High Grade Material：
Ready for shipment：
Delivery & Payment Term:
Any further questions please kindly let us know by sales@shangxincaster.com or whatsapp + 86 152 5836 8162
Different casters have different load-bearing capacities, which can facilitate the movement of bulky equipment, and can be used in various fields such as garbage bins, furniture, medical treatment, and industrial manufacturing. Now that casters have become a basic component, what is needed to ensure their quality? Usually, the caster manufacturer checks all aspects through various tests. The following will introduce the main aspects of the general caster inspection.
1. Impact test
Let the caster drop from a certain height to cause an impact and observe its performance.
2. Resistance function test
It is used to test the resistance of casters, especially for anti-static casters and conductive casters. It is worth noting that when testing the resistance work of the caster, it is necessary to keep the caster itself dry and the environment dry.
3. Static load test
When the caster is not moving, load it, and after a period of time, observe its deformation and the ability to maintain the corresponding performance.
4. Dynamic load test
During the movement of the casters, under different load conditions, the conditions of various indicators are recorded.
5. Aging test
It is necessary to spot-check some casters and conduct an aging test. The typical aging test is a load-bearing walking test.
