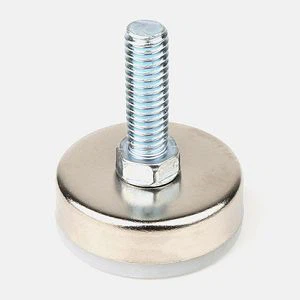

M8.25 35mm Furniture Leveling Feet

Model No.:  CP329KLF-825-35

Product name: M8.25 35mm Furniture Leveling Feet

Feet size:M8

After sales service：

1 Customers who purchase casters in our company can enjoy free maintenance for 2 years

2 Our company guarantees 7 * 16 hours of service, quickly responds to customers' questions and customized needs within 12 hours

3 For special projects, the company will provide remote guidance or on-site operation guidance

Model: CP329KLF-825-35

Surface Treatment: Galvanized zinc

Material:The chassis is made of white PP material, coated with nickel plated iron sheet; the screw is made of carbon steel

Artwork: The product chassis is made of white plastic clad iron sheet and fixed by machine riveting

Customer satisfaction:

High Grade Material：

Ready for shipment：

Delivery & Payment Term:

It is mainly used to adjust the level of the flat plate. It is used with the flat support to adjust the levelness of the flat plate. Put the required machine pad iron under the foundation hole of the machine tool, thread in the bolt, and screw it until it is in contact with the bearing plate, and then adjust the machine level (the bolt rotates clockwise, and the machine tool rises): after adjusting the machine level, tighten the nut to fix the horizontal state.

Because of the internal creep of rubber, when the pad iron is used for the first time, the machine tool level will be adjusted again two weeks later. The pad iron of machine tool is an anti shock and shock absorption device installed on the foundation of machine tool equipment, which is composed of inner support, rubber pad, outer seat, adjusting disc and screw. The load of the machine tool is transmitted to the rubber pad through the adjusting disc and inner bracket, which can effectively damp the longitudinal vibration of the machine tool equipment; through the adjusting plate, the lifting of the machine tool equipment can be adjusted and the load capacity of the pad iron can be significantly improved; the outer seat is fixed with the concrete floor by the expansion screw, which can effectively reduce the transverse vibration of the machine tool equipment.
