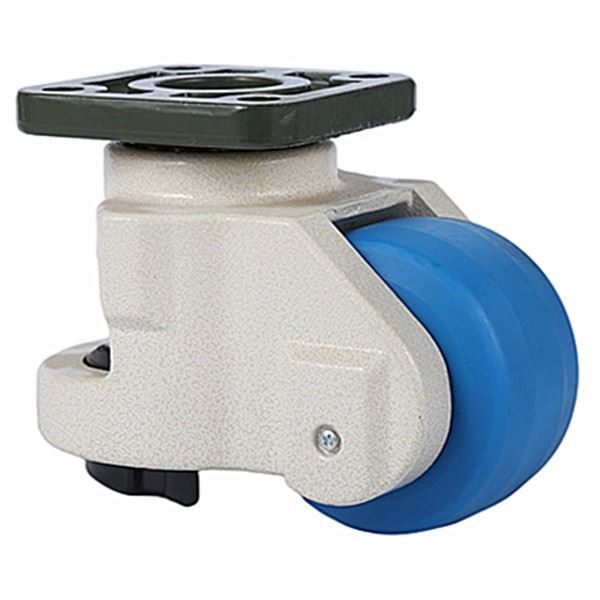

GD150F Leveling Machine Casters
GD150F leveling casters
GD150F Leveling Machine Casters
heavy duty casters for electrical cabinets
height adjustable casters for heavy machines
casters for heavy machine equipment
casters for Kitchen equipment
casters for Precision machine
casters for welding tables
craft tables wheels for shipping
equipment racks wheels for shipping
GD150F Leveling Machine Casters
Certs: ISO9001:2015, ROHS and REACH205 Compliant, Emvironmental friendly protection testing
Application:machines, automations, stands, medical equipment, lab equipment, airconditioning containers, pool tables, home and office furnitures, mould machines, precision apparatus, computer racks, tool cabinets, wholesale containers, work stations, contifuge , testing chamber, workbench and many other areas.
Model No.: CP81-GD-150F
Specification：
Type | casters with adjustable Nylon Pad |
Wheel size(mm) | 90*55 |
Tread Material | MC Nylon |
Mounting Height(mm) | 132 |
Plate Thickness(mm) | 8.5 |
Surface Treatment | Baseboard:carbon steel calcining Adjust:Stainless steel Housing:Aluminium alloy Base:Aluminium alloy Wheel:M C Nylon Foot: Aluminium alloy |
Color | Milk white/coffee |
Applicable Temperature | -15℃~70℃ |
Load Capacity(kgs) | 1500 |
Bearing Type | Sliding bearings |
CP81-GD-150F Series
Model | Wheel dia(mm) | Tread width(mm) | Mount height(mm) | Top-plate thickness(mm) | Top-plate size(mm) | Top-plate hole distance(mm) | Hole size(mm) | Adjust ground height(mm) | Single wheel load(mm) | 4 wheel load(KGS) |
CP81GD-150F | 90 | 55 | 132 | 8.5 | 100*100 | 70*70 | 13 | 15 | 1500 | 3000 |
Testing and Certificate
(1) Lelveing Caster REACH205 COMPLIANT TESTING REPORTS by Europe and North America Authority Approved, Environment friendly compatible when being applied for wholesales, distribution and terminal application.
(2) Lelveing Caster ROHS TESTING REPORTS by Europe and North America Authority Approved
Customer satisfaction:
FAQS:
1. Are you factory or trading company?
We are an ISO9001:2015 certificated manufacturer specialized in all kinds of caster wheels. We have over 13 years of experience in different kinds of products which include: Hand Trucks, Wheels, industrial casters.
2. What's your payment term and delivery time?
a. TT 30% in advance,other against copy documents.
b. And sure,EXW price & cash are also acceptable
3.What is your average production delivery time?
25-30 days against formal order and deposit.
4. How is the goods being packed?
Goods can be wrapped by plastic banding plus stretch film, palletized or any other packing upon customer's request.
5. I would like to have my own design products, is it ok?
Yes, we can go with your customized design, if your quantity is reaches MOQ.
The GD150F Leveling Machine Casters is used for arranging a horizontal adjustment mechanism on the connecting piece body of the medium-sized caster. It is mainly characterized in that the horizontal adjusting mechanism comprises a pipe body with internal threads and a bolt seat which can be screwed into the pipe body. A nut is arranged between the bolt seats, and the height of the bolt seat can be adjusted according to the rotation of the bolt seat, and the height can reach a predetermined level. The assembly has the advantages of simple structure, easy manufacture, easy assembly, low cost, light weight, beautiful appearance and strong market competitiveness. Horizontal adjustable, good stability, can be fixed without shaking, and use smoothly.
GD150F Leveling Machine Casters are quite convenient items, which are usually divided into movable castors and fixed castors. The two are also complementary. During use, the two casters are used together. Industrial casters, just listen to the name to know that industrial casters are used in factories or mechanical equipment. Below, the Industrial Castor Editor will show you the structure and characteristics of industrial castors.
Please try to test our GD150F Leveling Machine Casters, which will be superior in cost and quality. NO MOQ.
Any further questions please kindly let us know by sales@shangxincaster.com or whatsapp + 86 152 5836 8162
