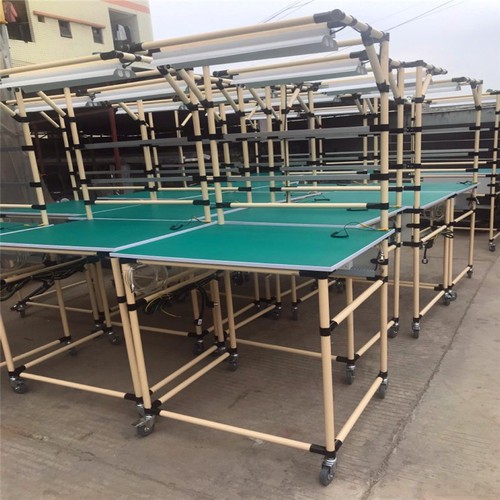

Casters specially designed for thin pipe workbench are divided into two types, namely flat wheels (also called plate-type casters) and expanded casters (commonly called rod-type casters).
1. Installation method of flat casters:
Flat double-pair wheels must be equipped with upper and lower clamps (EF-1000A/F type) to complete the installation and use them normally on the wire rod. Under normal circumstances, there are two sets of upper and lower clamps for casters and two sets of M8×40 outer hexagonal hexagonal galvanized white zinc screws. There are some buyers who think that the 18×40 screws are not long enough, and the casters are not easy to install. In fact, this is just the installation method of casters. Buyers who often install such casters know very well. Not short. The foot clamp is usually galvanized. After getting all the accessories, the overall frame of the wire rod product is installed, and then the casters are installed. First, place the plywood between the two poles, align the lower part of the top of the clamp, and then place the caster on the bottom of the clamp. Then tighten the nut, and another set of cleats can be installed in the same way.
2. Installation method of expanded skinny pipe casters:
Expanded casters are different from flat casters. This is a caster that is directly inserted into the wire rod, so it does not need to use caster cleats, but it must also be matched with a small thing so that it is not easy to fall off after installation! This small thing is a swollen circle.
