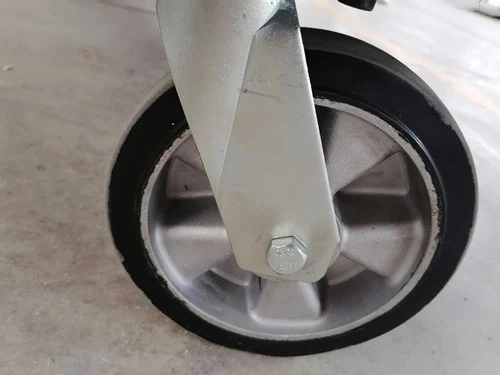

6 Inch Industrial Rubber Caster For Trash Containers

Model No.: CP42T-RA Product name: Rubber on aluminum Heavy Duty Casters Loading capacity: 400~550KGS Features: Elastic Rubber Wheels: highly elastic and have good load capacity and wear resistance. Reinforced Wheel Rim: Aluminum Turbine Core enhances the load capacity and offers the better rollability. Bearing: #6303 double ball bearings to enhance the rotation. Fork: Swivel fork with top plate. Pressed steel and integrally formed. Zinc plated. Others: Steel wheel covers to prevent the dust, water and other materials.

Send Inquiry

Chat Now

casters catalog

Product Introduction

Introduction:

This 6-inch Industrial Rubber caster for trash containers, developed and manufactured in 2012, was mainly used by the first batch of customers to transport heavy-duty trash cans in Europe. The trash cans are made of steel and need to bear tons of load capacity. Such trash can wheels are not used in the civilian field, but are used in the recycling and transportation of industrial waste products. They have strong weight properties, so the aluminum core trash can caster we recommend can fully meet the customer's use purpose in terms of load and push.

Casters are available in four sizes: 4, 5, 6, and 8 inches, with different load ranges. Such 6-inch Industrial Rubber caster for trash containers still needs to depend on the size and carrying capacity of the target industrial trash can. Imagine if there is no matching caster suitable for industrial trash cans, will there be problems with the customer's procurement cost and operational efficiency?

The characteristics and advantages of the 6-inch Industrial Rubber caster for trash containers are summarized as follows

1 The heavy-duty bracket with precision brake pads is a highlight design. The brake pads of this bracket adopt a double brake pad structure in the form of a pedal. The brake pads made of metal plates are relatively thick and have strong springs, which can realize the dual brake function of the rubber wheel surface and the openwork ruler wheel structure;

2 We use the American large bottom plate structure, 100mm*115mm large bottom plate, which can play a good role in stabilizing the equipment;

3 Usually the brake caster plays the function of a movable model and a braking function at the same time. There is no problem with the 30,000 times braking test; when used together with the movable caster, it can play the role of freely pushing the industrial trash can;

4 Elastic industrial rubber can easily avoid debris on the road, protect the caster and extend its life.

Specification：

Type	Aluminum core elastic rubber casters for trash containers
Wheel size(mm)	10050/12550/15050/20050
Tread Material	Rubber
Mounting Height(mm)	142~240
Plate Thickness(mm)	6
Surface Treatment	Zinc plated and painting
Tread Color	Black
Applicable Temperature	-30℃~70℃
Load Capacity(kgs)	400~550
Bearing Type	Ball bearings

Swivel Caster

6 inch Industrial Rubber caster for trash containers

Model	Wheel Dia.*Width (mm)	Total Height (mm)	Offset (mm)	Top Plate (LWT)	Hole Spacing (mm)	Hole Size (mm)	Load Capacity (KG)
CP42S-RA100.50	100*50	143	30	1161006	92/77*76/67	11	400
CP42S-RA125.50	125*50	164	38	1161006	92/77*76/67	11	420
CP42S-RA150.50	150*50	188	40	1161006	92/77*76/67	11	450
CP42S-RA200.50	200*50	236	58	1161006	92/77*76/67	11	500
